Fiber optic splice sleeves, also known as splice protectors or fusion splice sleeves, are devices used to join and protect the ends of two fiber optic cables. They allow for the creation of a permanent or temporary connection between two fibers, and provide a means of protecting the spliced fibers from external damage and environmental factors.

Fiber optic splice sleeves are typically made of heat-shrinkable plastic or stainless steel, and come in various sizes and shapes to accommodate different types of fiber optic cables and splicing techniques. Single-fiber splice sleeves are designed for use with individual fibers, while multi-fiber splice sleeves are used for splicing multiple fibers at once. Ribbon splice sleeves are used for splicing ribbon fiber optic cables, which consist of several parallel fibers bundled together.

The main function of a fiber optic splice sleeve is to provide physical protection for the spliced fibers. When two fibers are spliced together, they are usually held in place by a small piece of adhesive and covered with a protective jacket. The splice sleeve is then placed over the spliced fibers and heat-shrunk to fit snugly around them, providing an additional layer of protection against physical stresses and contaminants.

In addition to providing physical protection, fiber optic splice sleeves also play a critical role in maintaining the integrity of the fiber optic connection. Properly installed and maintained splice sleeves help to reduce signal loss and ensure the reliable transmission of data over long distances.

fiber optic splice sleeves are an essential component of any fiber optic network, and play a vital role in ensuring the reliable and efficient operation of these systems.

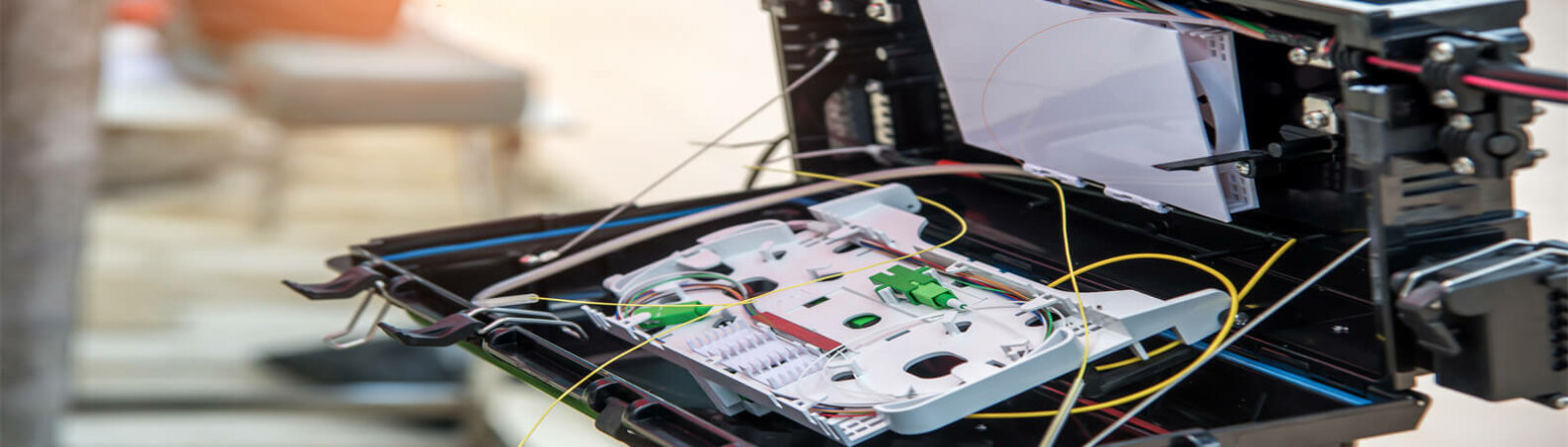

Fusion Splice Sleeves

40mm and 60mm Fiber Optic Splice Sleeves

40mm splice sleeves and 60mm splice sleeves

40mm splice sleeves and 60mm splice sleeves are two common sizes of fiber optic splice sleeves that are used to protect and secure the fibers after they have been spliced. These splice sleeves are typically made of heat-shrinkable plastic or stainless steel, and are available in a variety of styles and configurations to suit different applications and fiber counts.

40mm splice sleeves are typically used for splicing single fibers or small numbers of fibers, while 60mm splice sleeves are used for splicing larger numbers of fibers. Both 40mm and 60mm splice sleeves are designed to fit snugly around the spliced fibers when heated or tightened, and provide physical protection and strain relief for the fibers.

40mm splice sleeves and 60mm splice sleeves are widely used in telecommunications and networking applications, where they play a vital role in ensuring the reliability and performance of the fiber optic connection. They are also commonly used in other industries, such as oil and gas, aerospace and aviation, and power transmission, where they provide protection and strain relief for the fibers in harsh or extreme environments.

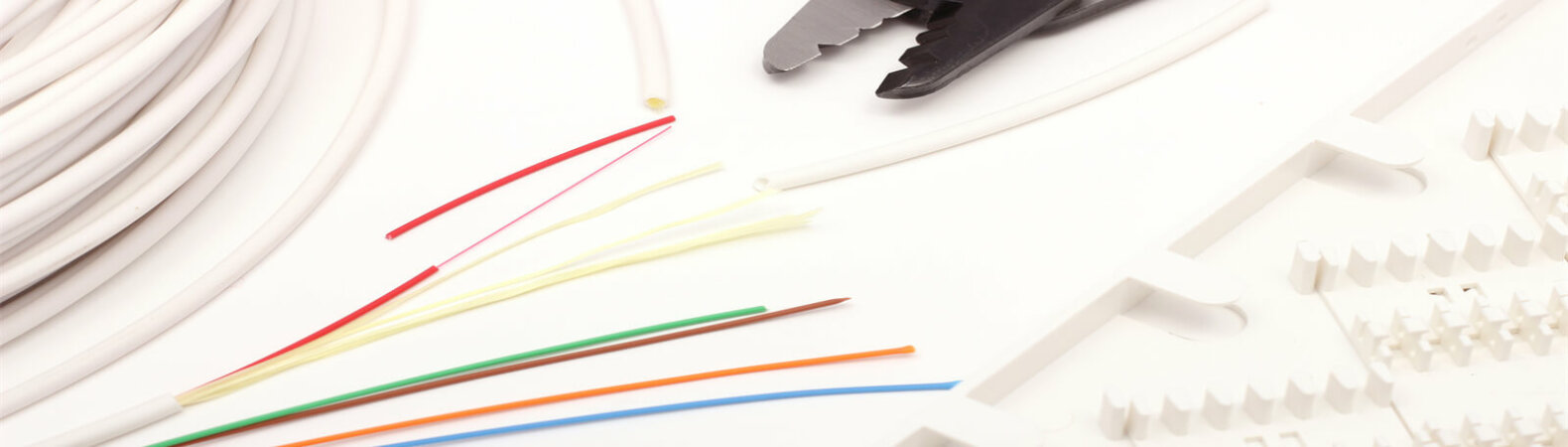

Types of fiber optic splice sleeves: single-fiber splice sleeves, multi-fiber splice sleeves, and ribbon splice sleeves.

fusion splicing protector

There are several different types of fiber optic splice sleeves available, each designed for specific types of fiber optic cables and splicing techniques.

Single-fiber splice sleeves, as the name suggests, are used for splicing individual fibers. These splice sleeves are typically made of heat-shrinkable plastic and are used in conjunction with fusion splicing, a process that involves melting the ends of two fibers together to create a permanent connection. Single-fiber splice sleeves are available in various sizes to accommodate different fiber diameters and splicing techniques.

Multi-fiber splice sleeves, also known as mass splice sleeves, are used for splicing multiple fibers at once. These splice sleeves are typically made of heat-shrinkable plastic or stainless steel, and are used in conjunction with fusion splicing or mechanical splicing. Mechanical splicing involves the use of a mechanical connector to hold the fibers in place, while fusion splicing involves melting the fibers together. Multi-fiber splice sleeves are commonly used in telecommunications and networking applications where a large number of fibers need to be spliced together.

Ribbon splice sleeves are used for splicing ribbon fiber optic cables, which consist of several parallel fibers bundled together. These splice sleeves are typically made of heat-shrinkable plastic or stainless steel, and are used in conjunction with fusion splicing or mechanical splicing. Ribbon splice sleeves are available in various sizes to accommodate different ribbon fiber configurations and splicing techniques.

In summary, there are three main types of fiber optic splice sleeves: single-fiber splice sleeves, multi-fiber splice sleeves, and ribbon splice sleeves. Each type is designed for use with specific types of fiber optic cables and splicing techniques, and serves the important function of protecting the spliced fibers and maintaining the integrity of the connection.

How to properly install and use fiber optic splice sleeves: step-by-step instructions and best practices.

Installation of fusion splice sleeves

Proper installation and use of fiber optic splice sleeves is critical for ensuring the reliability and performance of fiber optic connections. Follow these step-by-step instructions and best practices for installing and using fiber optic splice sleeves:
1.Prepare the fiber optic cables for splicing. This involves stripping the protective jacketing from the ends of the fibers to expose a small section of the fiber. Use a fiber optic stripper or a sharp blade to carefully remove the jacketing, being careful not to damage the fibers.
2.Clean the exposed fibers. Use a fiber optic cleaning tool or a lint-free cloth dampened with isopropyl alcohol to remove any dirt or contaminants from the fibers.
3.Splice the fibers together. There are several different splicing techniques that can be used, including fusion splicing, mechanical splicing, and adhesive splicing. Fusion splicing involves melting the ends of the fibers together using an electric arc, while mechanical splicing involves the use of a mechanical connector to hold the fibers in place. Adhesive splicing involves the use of a special adhesive to bond the fibers together.
4.Place the splice sleeve over the spliced fibers. Most splice sleeves are made of heat-shrinkable plastic and can be easily slipped over the spliced fibers. Position the splice sleeve so that it covers the spliced area and extends a short distance beyond it on both sides.
5.Heat the splice sleeve. Use a heat gun or other heating device to shrink the splice sleeve to fit snugly around the spliced fibers. Be careful not to overheat the splice sleeve, as this can cause damage to the fibers or the splice sleeve itself.
6.Test the spliced connection. Use a fiber optic tester to verify that the connection is functioning properly and that there is no signal loss.
By following these steps and best practices, you can ensure that your fiber optic splice sleeves are installed and used correctly, and that your fiber optic connections are reliable and efficient.

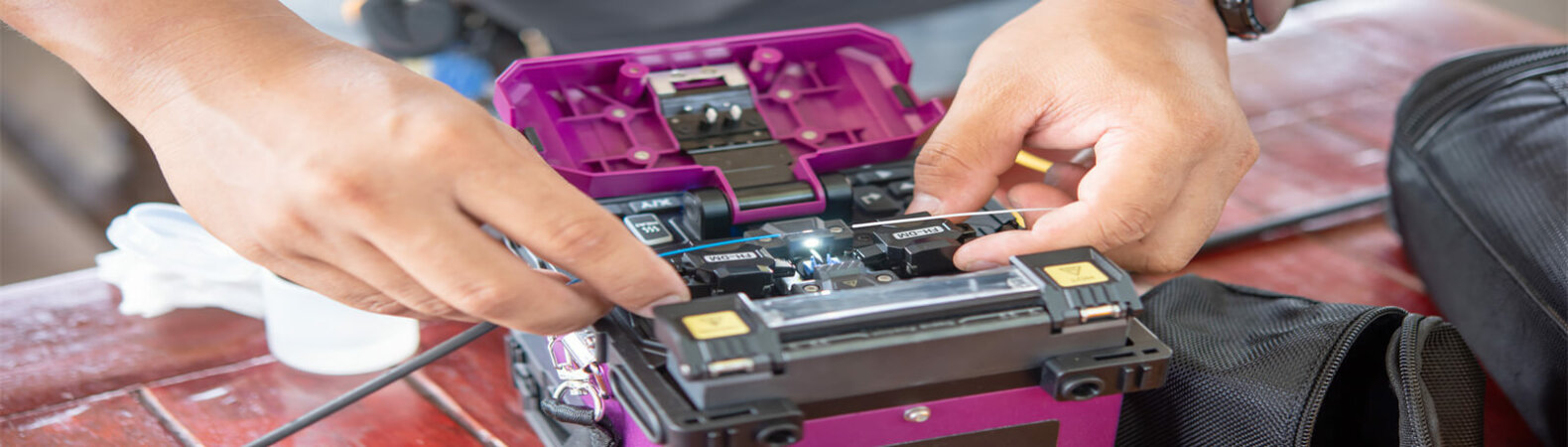

The different types of splicing techniques used with fiber optic splice sleeves: fusion splicing, mechanical splicing, and adhesive splicing.

Fusion Splicing Technologies

There are several different types of splicing techniques that can be used with fiber optic splice sleeves, each with its own advantages and disadvantages. The most common types of splicing techniques are fusion splicing, mechanical splicing, and adhesive splicing.

Fusion splicing is the most widely used and most reliable method of splicing fiber optic cables. It involves melting the ends of two fibers together using an electric arc, creating a permanent connection. Fusion splicing is typically performed using specialized fusion splicing equipment, which includes a splicer, cleaver, and oven. The splicer aligns the fibers and generates the electric arc, the cleaver cuts the fibers to the proper length, and the oven shrinks the splice sleeve over the spliced fibers. Fusion splicing is widely used in telecommunications and networking applications because it provides low loss and high reliability.

Mechanical splicing is a simpler and faster alternative to fusion splicing. It involves the use of a mechanical connector to hold the fibers in place, creating a temporary or permanent connection. Mechanical splicing requires no special equipment, and can be performed in the field using simple tools. However, mechanical splicing is generally less reliable than fusion splicing, and is more prone to signal loss and connection failure.

Adhesive splicing is a relatively new and emerging splicing technique. It involves the use of a special adhesive to bond the fibers together, creating a temporary or permanent connection. Adhesive splicing requires no special equipment, and can be performed quickly and easily. However, adhesive splicing is generally less reliable than fusion or mechanical splicing, and is more prone to signal loss and connection failure.

In summary, there are three main types of splicing techniques used with fiber optic splice sleeves: fusion splicing, mechanical splicing, and adhesive splicing. Each technique has its own advantages and disadvantages, while fusion splicing is the most popular used today.

The benefits of using fiber optic splice sleeves: improved reliability, reduced signal loss, and increased durability of fiber optic connections.

Using Fiber Optic Splice Sleeves

Fiber optic splice sleeves are an essential component of any fiber optic network, and offer a number of benefits in terms of reliability, signal loss, and durability.

Improved reliability: One of the main benefits of using fiber optic splice sleeves is improved reliability. Splice sleeves provide physical protection for the spliced fibers, protecting them from damage and contaminants that can cause connection failure. They also help to maintain the integrity of the fiber optic connection, reducing signal loss and ensuring the reliable transmission of data over long distances.

Reduced signal loss: Fiber optic splice sleeves can help to reduce signal loss, which is the reduction in signal strength that occurs as the signal travels through the fiber optic cables. Signal loss is a natural phenomenon that occurs due to the properties of the fiber optic material and the presence of impurities in the fibers. Splice sleeves can help to reduce signal loss by providing a clean, low-loss interface between the fibers, and by protecting the fibers from damage and contaminants that can cause signal loss.

Increased durability: Fiber optic splice sleeves also increase the durability of fiber optic connections by protecting the fibers from external damage and environmental factors. Splice sleeves are typically made of heat-shrinkable plastic or stainless steel, and are able to withstand a wide range of temperatures, pressures, and environmental conditions. This makes them ideal for use in harsh environments or in applications where the fibers may be subjected to physical stresses or extreme temperatures.

The use of fiber optic splice sleeves offers a number of benefits, including improved reliability, reduced signal loss, and increased durability of fiber optic connections. These benefits make splice sleeves an essential component of any fiber optic network, and help to ensure the efficient and reliable operation of these systems.

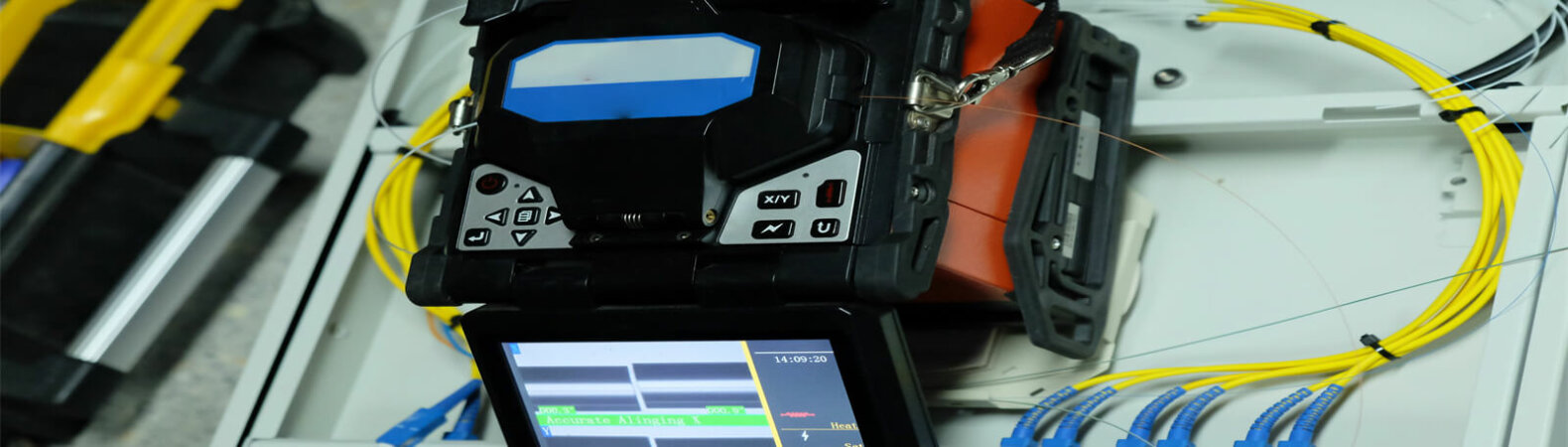

The different materials used in fiber optic splice sleeves: heat-shrinkable plastic, stainless steel, and ceramic.

splice sleeves materials

Fiber optic splice sleeves are typically made of three main materials: heat-shrinkable plastic, stainless steel, or ceramic. Each type of material has its own unique properties and characteristics, making it suitable for different types of applications and environments. Huihongfiber fiber optic splice sleeves are typically made of the combination of three main materials: heat-shrinkable plastic and stainless steel, or heat-shrinkable plastic and ceramic.

Heat-shrinkable plastic is the most common material used in fiber optic splice sleeves. It is lightweight, flexible, and easy to work with, and can be easily heat-shrunk to fit snugly around the spliced fibers. Heat-shrinkable plastic splice sleeves are available in a wide range of sizes and shapes, and can be used with a variety of fiber optic cables and splicing techniques. They are also relatively inexpensive, making them a popular choice for many applications.

Stainless steels are more durable and corrosion-resistant, making them ideal for use in harsh environments or in applications where the fibers may be subjected to high temperatures or extreme mechanical stresses. Stainless steels are able to withstand a wide range of temperatures and pressures, and have a longer lifespan.

Ceramic are made of a high-strength, high-temperature-resistant material that is able to withstand extreme temperatures and mechanical stresses. They are typically used in specialized applications, such as in high-temperature environments or in applications where the fibers may be subjected to extremely high pressures. Ceramic splice sleeves are able to withstand extreme conditions and have a longer lifespan.

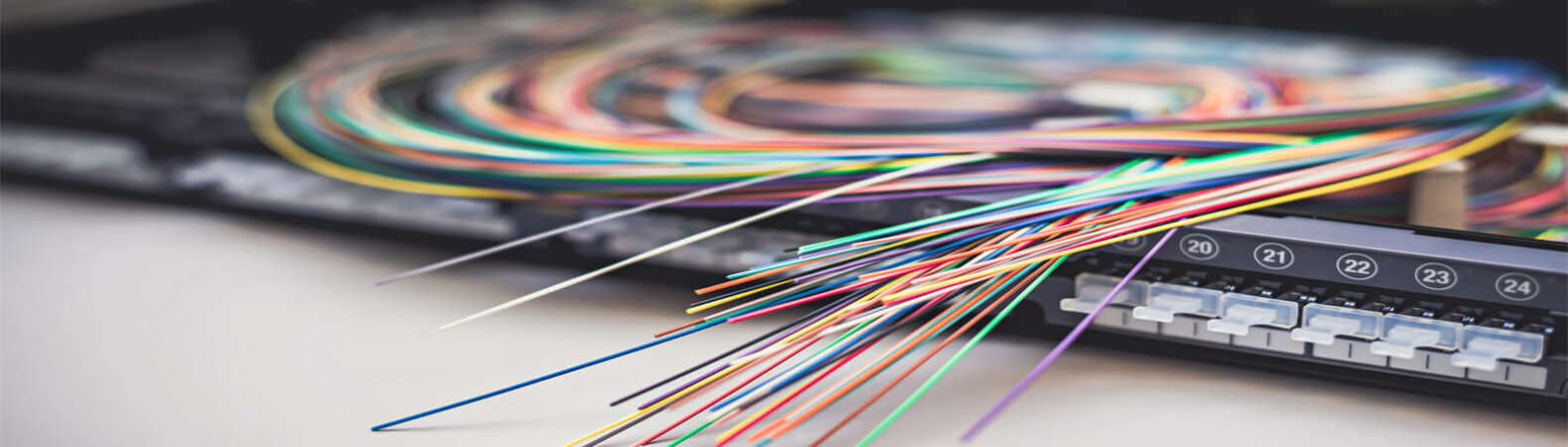

The importance of maintaining and inspecting fiber optic splice sleeves: tips for ensuring proper performance and maximizing lifespan.

maintaining and inspecting fiber optic splice sleeves

Maintaining and inspecting fiber optic splice sleeves is important for ensuring proper performance and maximizing the lifespan of these devices. Proper maintenance and inspection can help to identify potential problems early on, allowing for timely repairs or replacements to be made before the splice sleeves fail. Here are some tips for maintaining and inspecting fiber optic splice sleeves:
1.Follow proper installation procedures: Proper installation is critical for ensuring the reliability and performance of fiber optic splice sleeves. Follow the manufacturer’s instructions for installing the splice sleeves, and use the appropriate tools and equipment to ensure a proper fit.
2.Protect the splice sleeves from damage: Fiber optic splice sleeves are vulnerable to physical damage, such as crushing or bending. Take care to protect the splice sleeves from damage by handling them gently and avoiding sharp objects or rough handling.
3.Keep the splice sleeves clean: Contaminants such as dirt, dust, or moisture can accumulate on the splice sleeves and interfere with their performance. Keep the splice sleeves clean by regularly inspecting and cleaning them as needed.
4.Monitor the condition of the splice sleeves: Regularly inspect the splice sleeves to check for signs of wear or damage, such as cracks, discoloration, or deformation. If you notice any problems, replace the splice sleeves as needed to ensure proper performance.
5.Follow proper storage and handling procedures: Proper storage and handling of fiber optic splice sleeves can help to maximize their lifespan. Store the splice sleeves in a clean, dry, and temperature-controlled environment, and handle them gently to avoid damage.
By following these tips for maintaining and inspecting fiber optic splice sleeves, you can ensure proper performance and maximize the lifespan of these important devices.

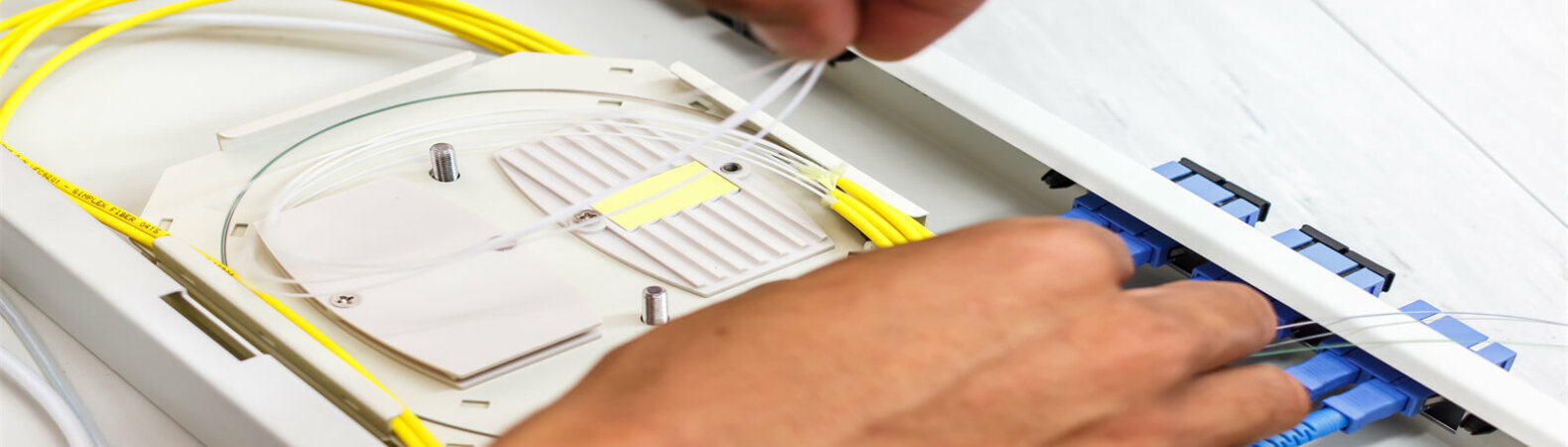

The role of fiber optic splice sleeves in network design and deployment: considerations for choosing the right type and number of splice sleeves.

choosing the right type and number of splice sleeves

Fiber optic splice sleeves play a critical role in the design and deployment of fiber optic networks, and it is important to choose the right type and number of splice sleeves to meet the specific requirements of the application. Here are some considerations for choosing the right fiber optic splice sleeves for your network:
1.Type of fiber optic cables: The type of fiber optic cables being used will determine the type of splice sleeves required. Single-fiber splice sleeves are used for splicing individual fibers, while multi-fiber splice sleeves are used for splicing multiple fibers at once. Ribbon splice sleeves are used for splicing ribbon fiber optic cables, which consist of several parallel fibers bundled together.
2.Splicing technique: The splicing technique being used will also determine the type of splice sleeves required. Fusion splicing, mechanical splicing, and adhesive splicing are the most common splicing techniques, and each requires a specific type of splice sleeve.
3.Environmental factors: The environmental factors present in the network deployment location will also affect the choice of splice sleeves. For example, if the network will be deployed in a harsh environment, such as in an outdoor or industrial setting, it may be necessary to choose splice sleeves made of more durable materials, such as stainless steel or ceramic.
4.Network requirements: The specific requirements of the network will also influence the choice of splice sleeves. For example, if low loss and high reliability are important considerations, fusion splicing and heat-shrinkable plastic splice sleeves may be the best choice. If speed and ease of installation are more important, mechanical splicing and multi-fiber splice sleeves may be a better option.
There are several factors to consider when choosing the right type and number of fiber optic splice sleeves for your network. Careful consideration of these factors will help to ensure that the splice sleeves meet the specific requirements of the application and contribute to the overall success of the network deployment.

The future of fiber optic splice sleeves: new technologies and developments that are improving the performance and versatility of these devices.

The future of fiber optic splice sleeves

The future of fiber optic splice sleeves looks bright, with new technologies and developments that are improving the performance and versatility of these devices. Here are some of the key trends and innovations that are shaping the future of fiber optic splice sleeves:
1.Miniaturization: As fiber optic networks become more widespread and are deployed in a wider range of applications, there is a growing need for smaller, more compact splice sleeves. Miniaturization is a key trend in the fiber optic splice sleeve industry, with manufacturers developing smaller, more lightweight splice sleeves that are easier to install and use in tight spaces or on small fiber optic cables.
2.Enhanced durability: Another trend in the fiber optic splice sleeve industry is the development of splice sleeves that are more durable and able to withstand extreme conditions. This includes the use of materials such as stainless steel and ceramic, which are more resistant to corrosion, abrasion, and extreme temperatures.
3.Improved performance: There is also a focus on developing splice sleeves that offer improved performance, such as lower loss and higher reliability. This includes the use of advanced manufacturing techniques and materials that help to reduce signal loss and improve the overall quality of the fiber optic connection.
4.Increased versatility: The versatility of fiber optic splice sleeves is also being enhanced, with the development of splice sleeves that can be used with a wider range of fiber optic cables and splicing techniques. This includes splice sleeves that are compatible with different types of fibers, such as single-mode, multi-mode, and plastic optical fibers.
The future of fiber optic splice sleeves looks bright, with a number of exciting new technologies and developments that are improving the performance and versatility of these devices. These trends and innovations will help to ensure that fiber optic splice sleeves remain an essential component of any fiber optic network.

Huihongfiber is a professional manufacturer of fiber optic splice sleeves

Huihongfiber offers a variety of fiber optic splice sleeves to meet the needs of different applications, including single-fiber splice sleeves, multi-fiber splice sleeves, and ribbon splice sleeves. The company also offers splice sleeves made of different materials, including heat-shrinkable plastic, stainless steel, and ceramic, to suit the specific requirements of the application.

In addition to its splice sleeves, Huihongfiber also offers a range of other fiber optic products, including fiber optic cables, connectors, and testing equipment. The company is committed to providing its customers with high-quality products and excellent customer service, and has a reputation for delivering top-notch products and solutions.
