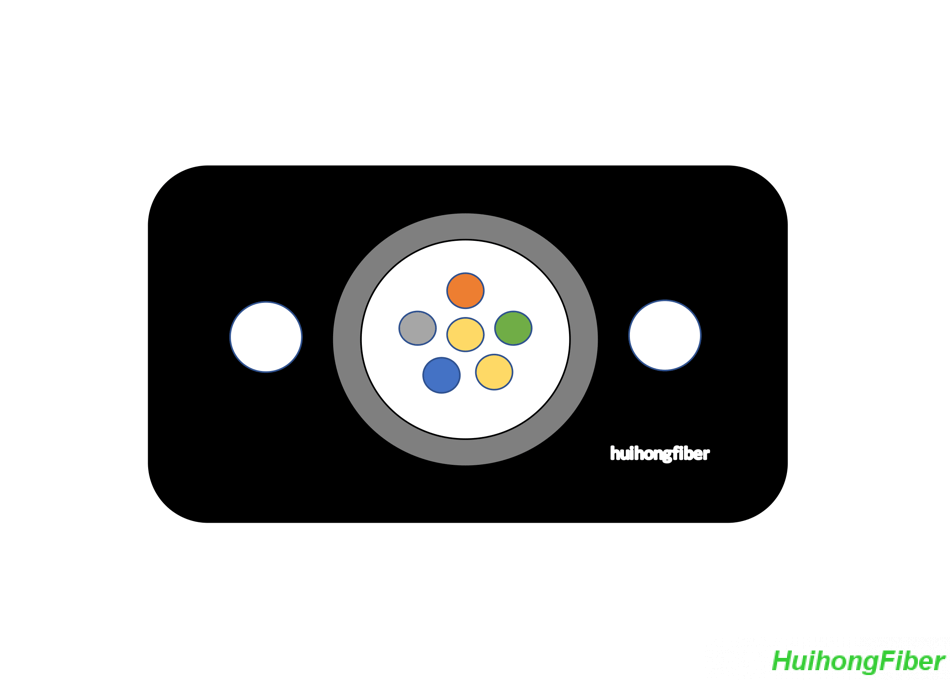

This FTTH drop cable features its loose tube structure and FRP strengthen members, the loose tube FTTH drop cable is available from 1 fiber to 12 fibers, suitable for outdoor installation. Optical fibers of the cable are put into a loose tube with filled water-resistant compound, there are 2 FRP strengthen member ensure the tension strength performance, FRP and the non-metal central loose tube is anti- electromagnet. Cable jacket is LSZH material, with optional white or black colors.
Loose Tube FTTH Drop Cable Features
- Loose tube protecting optical fibers from outside environment
- FRP and non-metal materials are anti- electromagnetic
- LSZH jacket, flame retardant and environmental friendly
- High Tension Resistant, suitable for direct installation indoor/outdoors
| Cable Name | Loose Tube FTTH Drop Cable | Fiber Core Numbers | 1 to 12 |
|---|---|---|---|
| Structure | Butterfly Flat | Optical Fiber | Single mode G.657A |
| Cable Jacket Material | LSZH (Black/White) | Strength Member Material | Non-Metal |
| Outer Diameter | (2.0±0.2)×(3.0±0.2)mm | Cable Weight | 10kg/km |
- FTTH indoor/outdoor deployment
- Trunk power transmission system
- Access network/ Local network with electromagnetic environment
