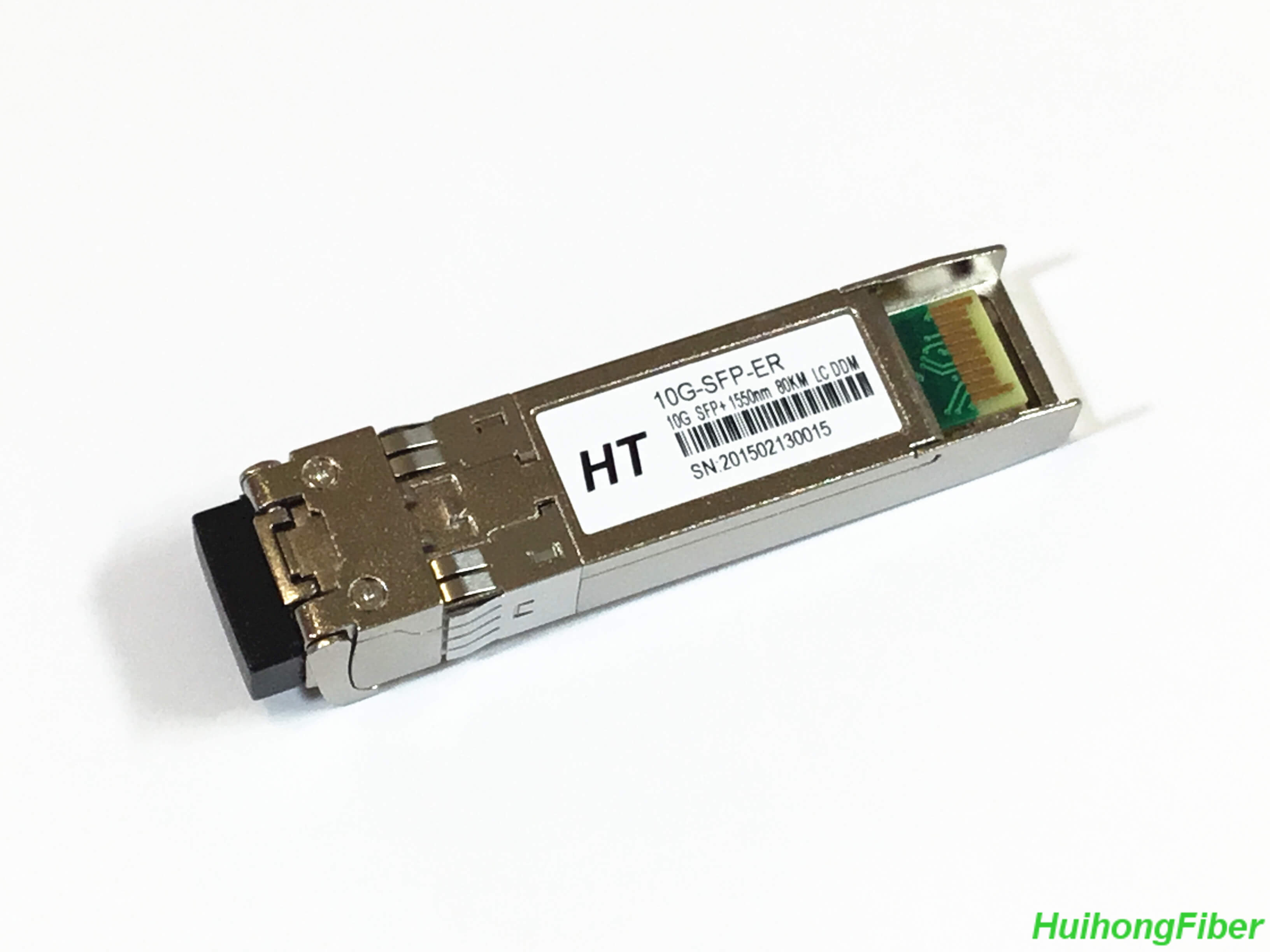

SFP 10GB ER is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The SFP 10GB ER converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification. The high performance 1550nm cooled EML transmitter and high sensitivity PIN receiver of the SFP 10GB ER provide superior performance for Ethernet applications at up to 40km links.
SFP 10GB ER Features:
Supports 9.95 to 11.3Gb/s bit rates
Hot-Pluggable
Duplex LC connector
1550nm cooled EML transmitter, PIN photo-detector
SMF links up to 40km
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<1.5W
Temperature Range: 0~ 70°C
RoHS compliant
SFP 10GB ER Applications:
10GBASE-ER/EW Ethernet
SONET OC-192 / SDH
10G Fiber channel
