MPO/MTP conversion cables are available in a wide range of models that provide fast, high-performance connectivity in backbone networks and link aggregation in data centers. They allow for uniform trunk cabling from racks, utilizing all 12 fibers. The cables are available with low-smoke zero-halogen (LSZH) and Plenum (OFNP) jackets and polarities Method-A or Method-B. Huihongfiber offers MPO/MTP Conversion Cables in OM3, OM4, and OM5 versions, with or without male or female guide pins, and in various lengths. Conversion options include different variations, such as 1 x MPO-24 to 2 x MPO-12, MPO-32 to 2x MPO-16, and MTP-32 to 2x MTP-16.
MTP conversion cables are designed to provide a more flexible multi-fiber cabling system based on MTP products. They offer more possibilities for the existing 16-fiber cabling system and are a cost-effective and lower-loss option compared to purchasing and installing separate conversion cassettes.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Fiber Connector | MPO/MTP | Gender | Female |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Glass Fiber | Single mode | Polish Type | APC to APC |
| Insertion Loss | 0.35dB Typ. | Return Loss | >=60dB |
| Attenuation at 1310nm | <=0.32dB/km | Attenuation at 1550nm | <=0.18dB/km |
| Cable Jacket | Plenum (OFNP)/LSZH | Minimum Bend Radius | 10mm |
| Jacket OD | 3.0mm | Breakout Length | 0.5m |
| Installation Tensile Load | 66N | Tensile Strength (Long/Short Term) | 80/240N |
| Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -40 to 85°C (-40 to 185℉) |

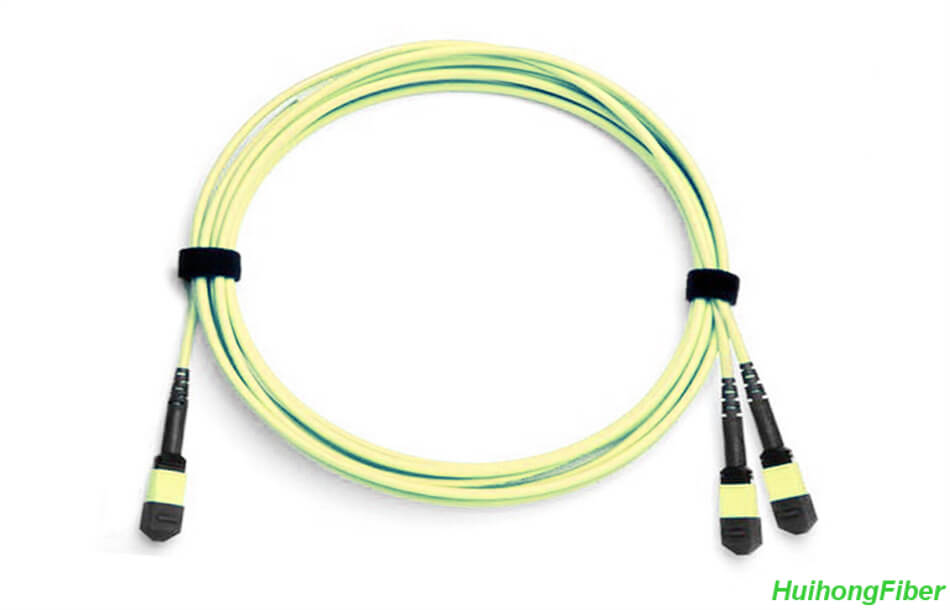

MTP/MPO conversion cables increase the capacity of the existing 12-fiber and 24-fiber MTP network. Unlike MTP to LC harness cable, MTP conversion cables are terminated with MTP connectors on both ends, with different fiber counts and types on each end. They provide more possibilities for the existing 24-fiber cabling system.
The MTP conversion cable shares the same fanout design with the MTP breakout cable but is terminated with MTP connectors on both ends. They use 24 fibers and have different variations for various applications, including 1×24 fibers to 2×12 fibers and 3×8 to 2×12. Huihongfiber conversion cables are ideal for 10G-40G, 40G-40G, 40G-100G, and 40G-120G connections, eliminating fiber waste and increasing the flexibility of the existing 12-fiber and 24-fiber MTP/MPO cabling system. The cables are universally compliant and compatible with other MTP cabling systems from major brands like Corning, Systimax, Siemon, and Molex. They also work with all major brands of QSFP+ transceivers.
