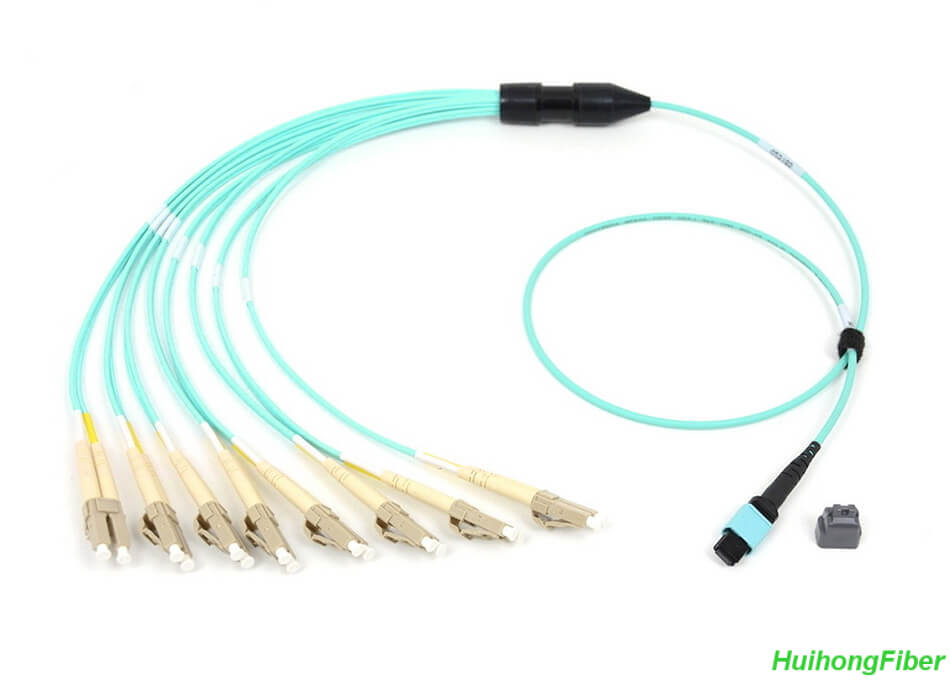

MPO Female to 8 LC Duplex Fiber Breakout Cable, 16 Fiber, 50/125 Multimode OM4

To support the emerging 400Gbps and 800Gbps data rates as well as the future 1.6Tbps transmission, 16-fiber cable has become necessary. The 16-core MPO-LC fiber patch cord can be used to connect 400G QSFP-DD SR8, which can well support 400G transmission in ultra-large-scale data centers. huihongfiber produces a series of MPO cassettes, MPO patch panels, which can be used with mpo-16 LC fiber patch cords. Huihongfiber’s MPO LC cables are also optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S fiber optic direct connection and for high-density data centers applications.

MPO to 16 LC fiber patch cable
Fiber Type50/125µm Multimode OM4Fiber Count16-Cores
Connector TypeMPO Female to 8xLC DuplexPolishUPC to UPC
Cable Length 1m,2m,3m … 300m or CustomizeBreakout part Diameter2.0 mm
Insertion Loss≤0.6dBReturn Loss≥20dB
PolarityType B (Crossover)Durability≥500 times
Jacket MaterialLSZHJacket ColorMagenta/Aqua
EnvironmentOperating: -20°C to 70°C
Storage: -40°C to 85°C
ApplicationOptical switching interframe connections
High density fiber card edge access
400G  interconnect
Data Center cabling
Part Number Description
MPO/F-8xDLC-OM4-1M-B-LSZH1M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
MPO/F-8xDLC-OM4-3M-B-LSZH3M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
MPO/F-8xDLC-OM4-5M-B-LSZH5M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
MPO/F-8xDLC-OM4-7M-B-LSZH7M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
MPO/F-8xDLC-OM4-10M-B-LSZH10M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
MPO/F-8xDLC-OM4-20M-B-LSZH20M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
MPO/F-8xDLC-OM4-30M-B-LSZH30M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, PC, Polarity B, LSZH
MPO/F-8xDLC-OM4-50M-B-LSZH50M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
MPO/F-8xDLC-OM4-70M-B-LSZH70M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
MPO/F-8xDLC-OM4-100M-B-LSZH100M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
MPO/F-8xDLC-OM4-200M-B-LSZH200M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
MPO/F-8xDLC-OM4-300M-B-LSZH300M MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
MPO/F-8xDLC-OM4-xM-B-LSZHCustom Length xM MPO Female to 8xLC Duplex 50/125µm Multimode OM4 Fiber Optic Harness Cable, 16 Fiber, UPC, Polarity B, LSZH
