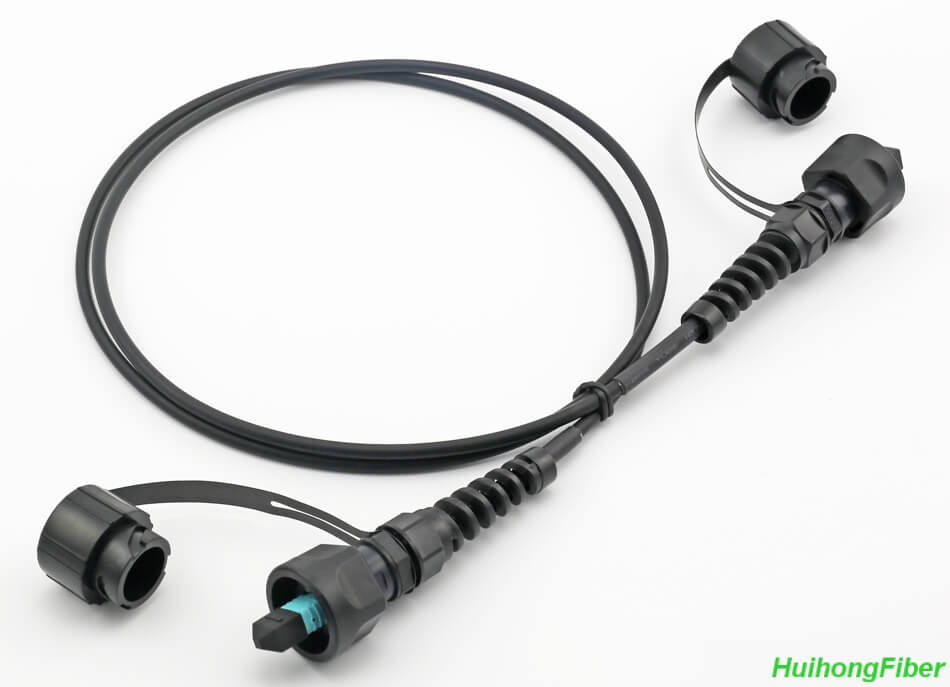

This IP67 standard outdoor ODVA MPO fiber cables are used in FTTA, FTTH, industrial and military applications. They are ideal for harsh environment use, such as WiMax, LTE and RRH using in FTTA connectivity, which require rugged fiber connectors and armored cables. Typical MPO connector can transmit 12 channels inside the single connector body, while the ODVA standard ensure the compatibility with other compliant connectors systems. ODVA MPO are factory made and tested by Huihongfiber, with optional cable diameters, cable length, optical fiber types (single mode ones and multimode ones).

Connector A ODVA MPO Connector B ODVA MPO or Custom
Fibre Mode OS2 9/125μm SM Wavelength 1310/1550nm
Polish Type UPC/APC Mini Bend Radius 10mm
Insertion Loss 0.3dB Max (0.15dB Typ.) Return Loss ≥60dB
Jacket OD 7mm Cable Jacket OFNR/OFNP/LSZH
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Connector A ODVA MPO Connector B ODVA MPO or Custom
Fibre Mode OM1 62.5/125μm Wavelength 850/1300nm
Polish Type UPC Mini Bend Radius 7.5mm
Insertion Loss 0.3dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 7mm Cable Jacket OFNR/OFNP/LSZH
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Connector A ODVA MPO Connector B ODVA MPO or Custom
Fibre Mode OM2 50/125μm Wavelength 850/1300nm
Polish Type UPC Mini Bend Radius 7.5mm
Insertion Loss 0.3dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 7mm Cable Jacket OFNR/OFNP/LSZH
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Connector A ODVA MPO Connector B ODVA MPO or Custom
Fibre Mode OM3 50/125μm Wavelength 850/1300nm
Polish Type UPC Mini Bend Radius 7.5mm
Insertion Loss 0.3dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 7mm Cable Jacket OFNR/OFNP/LSZH
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Connector A ODVA MPO Connector B ODVA MPO or Custom
Fibre Mode OM4 50/125μm Wavelength 850/1300nm
Polish Type UPC Mini Bend Radius 7.5mm
Insertion Loss 0.3dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 7mm Cable Jacket OFNR/OFNP/LSZH
Installation Tensile Load 66 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C

ODVA MPO Fiber Patch Cable Applications

  • FTTX /FTTA Systems
  • PON Networks
  • CATV Links
  • Industrial
  • Military
  • Optical Signal Distribution
  • Remote Radio Heads (RRH)
