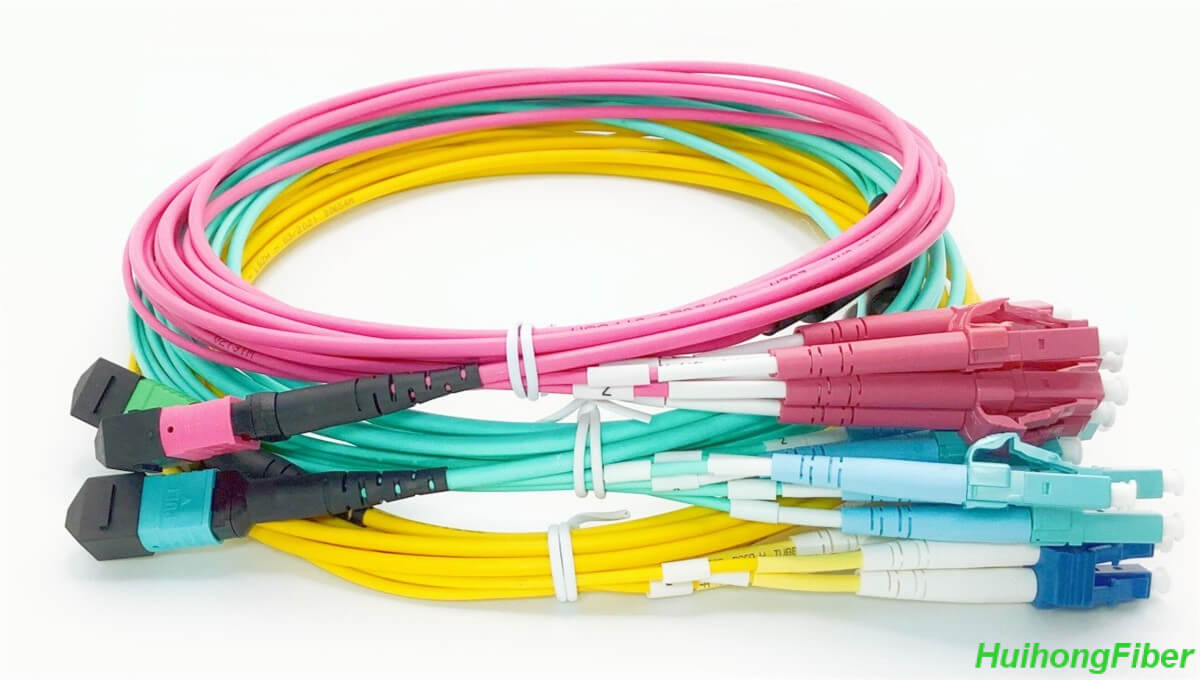

MPO/MTP to LC harness cables are used to fan out the 12 core MPO/MTP fibers into generic connectors, usually it is MPO/MTP to LC, but we can also make it MPO/MTP to SC/ST, FC, MTRJ, E2000, etc. The MPO/MTP harness cable is used to transit from backbone trunk cables to fiber management racks, cable jackets available are Mini-Core Plenum (OFNP), Mini-Core Riser (OFNR), Mini-Core Low Smoke Zero Halogen (LSZH), typical optical fiber types are single mode OS2, multimode OM1, OM2, OM3, OM4, OM5. The MPO/MTP to LC harness cables can be made with 2mm or 3mm ruggedized furcation legs in customized length, this will hep make it more rugged.

Connector A MPO/MTP Connector B LC

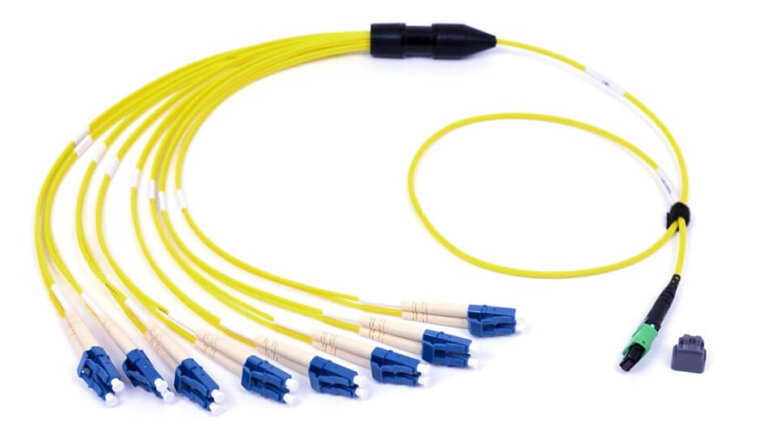

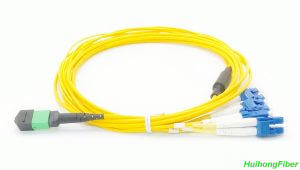

Fibre Mode OS2 9/125μm SM Wavelength 1310/1550nm
Polish Type UPC/APC Mini Bend Radius 10mm
Insertion Loss 0.35dB Max (0.15dB Typ.) Return Loss ≥60dB
Jacket OD 3.0mm Breakout Diameter 2mm
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Connector A MPO/MTP Connector B LC
Fibre Mode OM3 50/125μm Wavelength 850/1300nm
Polish Type UPC Mini Bend Radius 7.5mm
Insertion Loss 0.35dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 3.0mm Breakout Diameter 2mm
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Connector A MPO/MTP Connector B LC

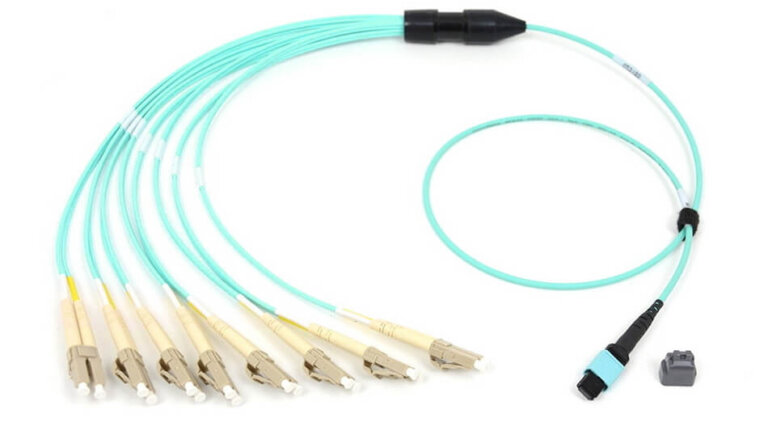

Fibre Mode OM4 50/125μm Wavelength 850/1300nm
Polish Type UPC Mini Bend Radius 7.5mm
Insertion Loss 0.35dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 3.0mm Breakout Diameter 2mm
Installation Tensile Load 66 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Connector A MPO/MTP Connector B LC
Fibre Mode OM5 50/125μm Wavelength 850/1300nm
Polish Type UPC Mini Bend Radius 7.5mm
Insertion Loss 0.35dB Max (0.15dB Typ.) Return Loss ≥20dB
Jacket OD 3.0mm Breakout Diameter 2mm
Color Lime Green Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C

MPO/MTP to LC Harness Cables Features and Applications

  • MTP/MPO 12 fiber female or male connectors on one end, with simplex generic connectors on the other end.
  • 2mm or 3mm ruggedized furcation legs available in customized length to make it even stronger.
  • Round Mini-core cable with minimal cable diameter for high density installations.
  • High precision factory pre-terminated and tested MTP/MPO harness cable assemblies.
  • Meet the standards of TIA/EIA and IEC.
factoryequip

Advanced Factory Facilities

We have been developing our factory and keep the advanced manufacturing facilities, we have dust free workplaces and equipment that use the cutting-edge technologies. This is our first step to ensure quality.

worker

Professional and Skilled Workers

The professional engineers and skilled workers are our treasure, since our foundation in 1995, we have been working to improve the treatment of our employee, we are proud to have the highly professional and stable team.

test3

Modern Fiber Optic Test System

We have developed a complete workflow for the fiber optic products test, from raw materials, components, to the end products. Testing is throughout the pre-manufacturing stage, manufacturing stage and before delivery stage.

isoc

ISO Certified Manufacturer

We have passed the ISO inspection since our factory foundation, the certified products include MPO/MTP fiber patch cables, cassettes, patch panels, and also include our fiber optic transceivers and FTTH cables and equipment.

costd

Factory Price, Lowest Cost

MPO/MTP is one of our major products. By purchasing the MPO/MTP products from us, you get the lowest factory price, you can cut down the cost greatly compared with buying from traders and online stores.

delivery

Fast Delivery from Direct Manufacturer

We have fast delivery of the standard MPO/MTP cables and closures, even if you need special custom cables, we are able to provide you with a quick design and help you get the best solution for your MPO/MTP requirement.

20316545

Fiber Patch Cables

We make fiber optic patch cable, LC,SC,ST, E2000,MU, VF45,FC, MT-RJ, MPO, Volition,MTP, DIN, D4, SMA, Escon,FDDI and more. UPC polish, APC polish connectors.

25254657

Fiber Optic Pigtails

We are supplier of fiber pigtails SC, SC/APC, ST, ST/APC,FC, FC/APC, LC, LC/APC, MT-RJ ,MPO,MTP,E2000,simplex,duplex,fan out pigtails.

8251920

Fiber Optic Splitters

Bare fiber PLC splitter, blockless PLC splitter,LGX PLC splitter, fused fiber optic splitter, rack mount fiber splitters and custom made fiber splitter boxes.

8735278

Fiber Optic Adapters

Fiber Optic Adapters FC, SC, ST, LC, MT-RJ, MU, simplex, E2000, FC/APC,duplex, SC/APC, LC/APC, E2000/APC ,quad, mating sleeves, hybrid fiber optic adapters.

17843783

Fiber Transceivers

Transceivers for major players in the industry, SFP,XFP,SFP+,GBIC, Xenpak,X2,BIDI,CWDM,DWDM,QSFP, transceivers cables, QSFP28, QSFP Plus, CXP, CFP, CFP2 and more.

8817066

Fiber Optic Cables

Indoor fiber optic cables, outdoor cables, FTTH cables, single mode, multimode, OS1,OS2,OM1,OM2,OM3,OM4,OM5 and more.

Key Benefits of MPO/MTP to LC Harness Cables

  • Fiber Types: OS2 G652D, G.657A1, 50/125 OM3, OM4, OM5
  • Jacket standard colors: OS2 and G.657A1 yellow, OM3 and OM4 Aqua, OM5 Lime Green
  • Connectors: 12 x Fiber Ferrule MPO/MTP connector female (Un-pinned) or male (Pinned)
  • Cable cores:24, 48, 72, 96, 144 cores Micro-Cable versions available
  • Jacket materials: LSZH, OFNP (Plenum), OFNR (Riser)
  • High Density Up to 144x Fibers in one cable
  • Pulling eyes and reel types optional
  • Fast Deployment: Modular cables and cassettes, make deployment and maintenance easier work

MPO/MTP to LC harness cables are used to connect the MPO/MTP cassettes, patch panels or backbone trunk cable assemblies with the active optical devices, typical cable diameter is 3mm or 4.5mm, with multiple fiber cores inside, options include 24 cores, 48, 72, 96 and 144 cores. We make the MPO/MTP to LC harness cables at very good quality and competitive prices, the MPO/MTP to LC harness cables are perfect choice for high speed network environment, such as 40G, 100G and more. Except for the LC connectors, we can also assemble it to be with SC/FC/ST connectors.
