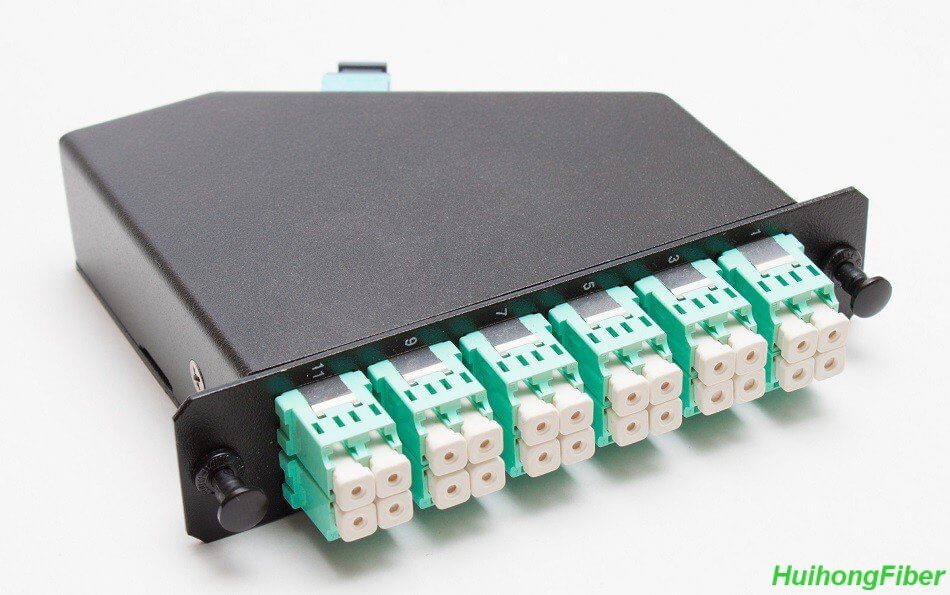

MPO/MTP cassette is a compact and rugged small unit, integrated with pre-installed adapters and MPO/MTP hydra cables inside the closure. It can be used alone or plugged into the MPO/MTP fiber patch panels. the cassettes are available in 12 fibers, 24 fibers and 48 fiber versions. They are fully plug and play cassette. Typically, it is with MPO/MTP to LC, but we can custom make it to fit SC/ST/FC types of connectors. All the fiber connectors have APC and UPC versions, single mode or multimode choices available. The MPO/MTP cassette is an easy to use products suitable for data centers and other high-density fiber installation areas.

Fiber Count 12/24 Fiber Type OS2 9/125μm SMF
Front Connector 6/12 LC UPC Duplex Rear Connector 1/2 MPO/MTP
MPO/MTP Key up to Key down Performance Level Laser optimized
Insertion Loss MPO/MTP≤0.35dB, LC≤0.2dB Return Loss MPO/MTP≥60dB, LC≥50dB
RoHS Compliant Yes Dimension(HxWxD) 1.38”x4.29”x4.64”(35x109x118mm)
Operating Temperature 0°C to 70°C (32°F to 158°F) Storage and Shipping Temperature -40°C to +75°C (-40°F to 167°F)
Fiber Count 12/24 Fiber Type OM3 MMF
Front Connector 6/12 LC UPC Duplex Rear Connector 1/2 MPO/MTP
MPO/MTP Key up to Key down Performance Level Laser optimized
Insertion Loss MPO/MTP≤0.35dB, LC≤0.2dB Return Loss MPO/MTP≥20dB, LC≥20dB
RoHS Compliant Yes Dimension(HxWxD) 1.38”x4.29”x4.64”(35x109x118mm)
Operating Temperature 0°C to 70°C (32°F to 158°F) Storage and Shipping Temperature -40°C to +75°C (-40°F to 167°F)
Fiber Count 12/24 Fiber Type OM4 MMF
Front Connector 6/12 LC UPC Duplex Rear Connector 1/2 MPO/MTP
MPO/MTP Key up to Key down Performance Level Laser optimized
Insertion Loss MPO/MTP≤0.35dB, LC≤0.2dB Return Loss MPO/MTP≥20dB, LC≥20dB
RoHS Compliant Yes Dimension(HxWxD) 1.38”x4.29”x4.64”(35x109x118mm)
Operating Temperature 0°C to 70°C (32°F to 158°F) Storage and Shipping Temperature -40°C to +75°C (-40°F to 167°F)
Fiber Count 12/24 Fiber Type OM5 MMF
Front Connector 6/12 LC UPC Duplex Rear Connector 1/2 MPO/MTP
MPO/MTP Key up to Key down Performance Level Laser optimized
Insertion Loss MPO/MTP≤0.35dB, LC≤0.2dB Return Loss MPO/MTP≥20dB, LC≥20dB
RoHS Compliant Yes Dimension(HxWxD) 1.38”x4.29”x4.64”(35x109x118mm)
Operating Temperature 0°C to 70°C (32°F to 158°F) Storage and Shipping Temperature -40°C to +75°C (-40°F to 167°F)

MPO/MTP Cassettes Features and Applications

  • High-density and small design, simple to use MPO/MTP cassette box.
  • Available in 12 / 24 / 48 fiber cassette versions, all are compact size, suitable for corresponding fiber patch panels.
  • Field connections with pre-installed factory-terminated and tested MTP/MPO hydra cables and adapters.
  • Modular system management, plug and play, improve cabling manageability
    Customized fiber polarity MPO/MTP connections.
factoryequip

Advanced Factory Facilities

We have been developing our factory and keep the advanced manufacturing facilities, we have dust free workplaces and equipment that use the cutting-edge technologies. This is our first step to ensure quality.

worker

Professional and Skilled Workers

The professional engineers and skilled workers are our treasure, since our foundation in 1995, we have been working to improve the treatment of our employee, we are proud to have the highly professional and stable team.

test3

Modern Fiber Optic Test System

We have developed a complete workflow for the fiber optic products test, from raw materials, components, to the end products. Testing is throughout the pre-manufacturing stage, manufacturing stage and before delivery stage.

isoc

ISO Certified Manufacturer

We have passed the ISO inspection since our factory foundation, the certified products include MPO/MTP fiber patch cables, cassettes, patch panels, and also include our fiber optic transceivers and FTTH cables and equipment.

costd

Factory Price, Lowest Cost

MPO/MTP is one of our major products. By purchasing the MPO/MTP products from us, you get the lowest factory price, you can cut down the cost greatly compared with buying from traders and online stores.

delivery

Fast Delivery from Direct Manufacturer

We have fast delivery of the standard MPO/MTP cables and closures, even if you need special custom cables, we are able to provide you with a quick design and help you get the best solution for your MPO/MTP requirement.

20316545

Fiber Patch Cables

We make fiber optic patch cable, LC,SC,ST, E2000,MU, VF45,FC, MT-RJ, MPO, Volition,MTP, DIN, D4, SMA, Escon,FDDI and more. UPC polish, APC polish connectors.

25254657

Fiber Optic Pigtails

We are supplier of fiber pigtails SC, SC/APC, ST, ST/APC,FC, FC/APC, LC, LC/APC, MT-RJ ,MPO,MTP,E2000,simplex,duplex,fan out pigtails.

8251920

Fiber Optic Splitters

Bare fiber PLC splitter, blockless PLC splitter,LGX PLC splitter, fused fiber optic splitter, rack mount fiber splitters and custom made fiber splitter boxes.

8735278

Fiber Optic Adapters

Fiber Optic Adapters FC, SC, ST, LC, MT-RJ, MU, simplex, E2000, FC/APC,duplex, SC/APC, LC/APC, E2000/APC ,quad, mating sleeves, hybrid fiber optic adapters.

17843783

Fiber Transceivers

Transceivers for major players in the industry, SFP,XFP,SFP+,GBIC, Xenpak,X2,BIDI,CWDM,DWDM,QSFP, transceivers cables, QSFP28, QSFP Plus, CXP, CFP, CFP2 and more.

8817066

Fiber Optic Cables

Indoor fiber optic cables, outdoor cables, FTTH cables, single mode, multimode, OS1,OS2,OM1,OM2,OM3,OM4,OM5 and more.

Key Benefits of MPO/MTP LGX Cassettes

  • Fiber Types: OS2 G652D, G.657A1, 50/125 OM3, OM4, OM5
  • LC connectors(SFF data centre standard), SC connectors optional
  • 12 and 24 fibre versions – 6 LC duplex or 12 LC Duplex
  • MPO/MTP Polarity: A (standard), B or C
  • 12 fiber version – SC (Simplex)
  • Low optical loss, highly reliable Huihongfiber MPO/MTP components
  • Connectors: 12 x Fiber Ferrule MPO/MTP connector female (Un-pinned) or male (Pinned)
  • Fast Deployment: Modular cables and cassettes, make deployment and maintenance fast and easy

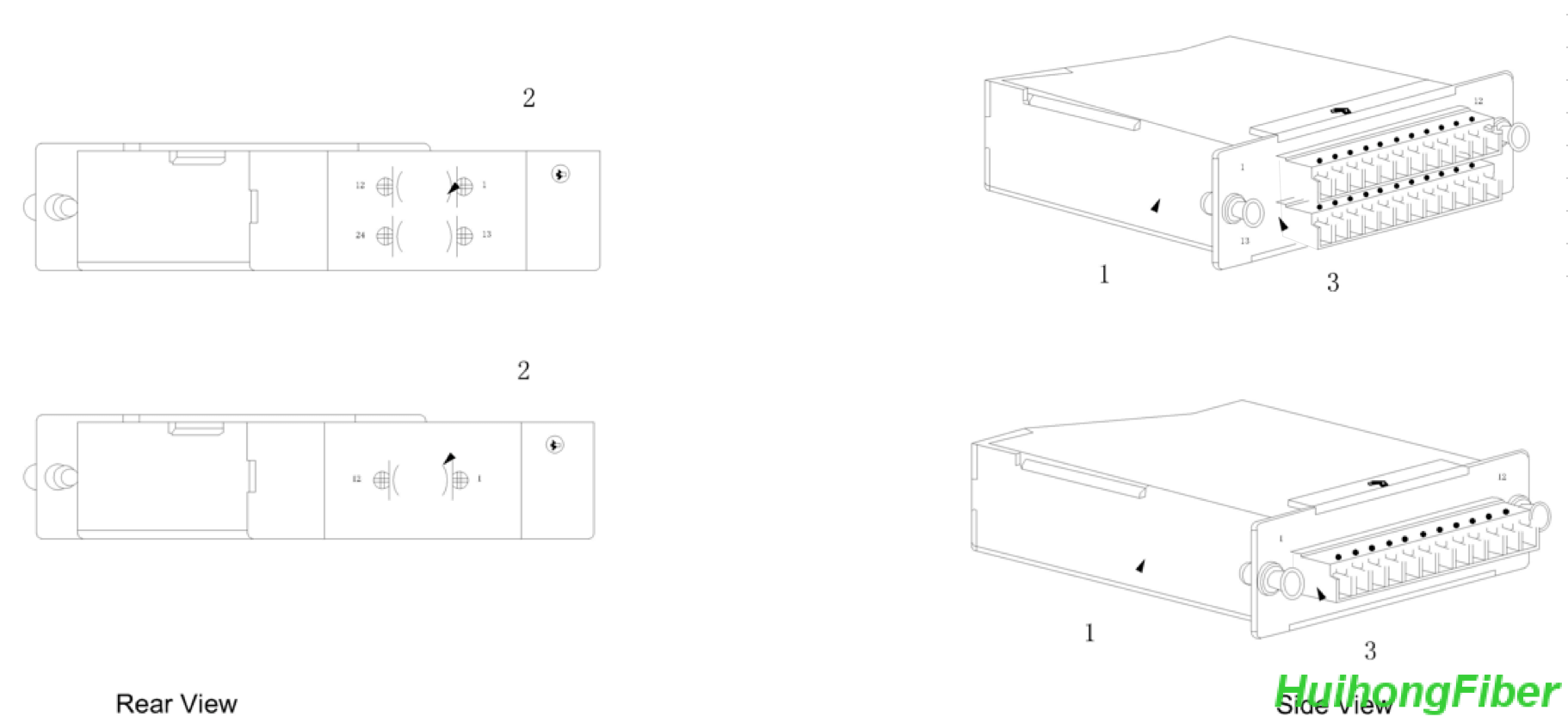

MPO/MTP LGX cassettes are modular designed small boxes that provide secure transmission between MPO/MTP connectors and LC connectors. the MPO/MTP cassettes can be used alone or put inside the patch panels, they are fully plug and play. Inside the cassettes there is MPO/MTP hydra cables, protected by the metal closure. We can custom make the cassettes to be single mode OS2, or multimode OM2, OM3, OM4, OM5; with one single MPO/MTP cassettes, it can deploy 12 or 24 LC connections. The MPO/MTP LGX cassettes can be mounted in 1U or 4U 19” multi-slot chassis.
